Pigment Red 242-Corimax Red 4RF

Product parameter list

Color Index No.Pigment Red 242
Product nameCorimax Red 4RF
Product categoryOrganic Pigment
Light Fastness(coating)7
Heat Resistance(coating)180
Light Fastness(plastic)7-8
Heat Resistance(plastic)280
Color
Pigment-Red-242-Color
Hue distribution

Application:

Recommended for automotive paints, industrial paints, powder coatings, printing pastes, PVC, rubber, PS, PP, PE, PU, water based inks, solvent inks, UV inks
Suggested for architectural coatings, coil coatings, offset inks.


Pigment Red 242 has a yellowish red or large red phase, and is excellent in solvent resistance and acid / alkaline resistance. It is mainly used for coloring of plastics such as PVC, PS, ABS, and polyolefins. It is heat-resistant to 300 ° C (1 / 3SD) in HDPE, but it affects dimensional deformation. It is suitable for the coloring of raw pulp of polypropylene and resistance to migration in soft PVC. It has medium tinting strength; it is also recommended for coatings, automotive coatings, anti-glazing paints, and heat-resistant 180 ° C; for high-end printing inks, such as PVC film and metal decorative printing inks, laminated plastic films, etc.

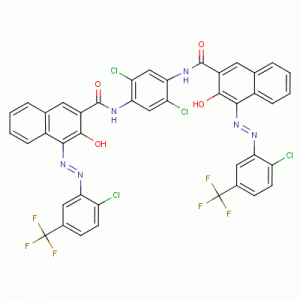

Molecular Structure:

English name: C.I.Pigment Red 242
English alias: Pigment red 242; PR242; Sandorin Scarlet 4RF; 2-Naphthalenecarboxamide, N, N '-(2,5-dichloro-1,4-phenylene) bis- [4-[[2-chloro-5- ( trifluoromethyl) phenyl] azo] -3-hydroxy-3-hydroxy-; (4Z, 4'E) -N, N '-(2,5-dichlorobenzene-1,4-diyl) bis (4-{[2- chloro-5- (trifluoromethyl) phenyl] hydrazono} -3-oxo-3,4-dihydronaphthalene-2-carboxamide); 4- [2-chloro-5- (trifluoromethyl) phenyl] azo-N- [2,5- dichloro-4-[[4- [2-chloro-5- (trifluoromethyl) phenyl] azo-3-hydroxy-naphthalene-2-carbonyl] amino] phenyl] -3-hydroxy-naphthalene-2-carboxamide; N, N '-(2,5-dichloro-1,4-phenylene) bis [4-[[2-chloro-5- (trifluoromethyl) phenyl] azo] -3-hydroxynaphthalene-2-carboxamide] CAS number: 52238-92-3
EINECS number: 257-776-0
Molecular formula: C42H22Cl4F6N6O4
Molecular weight: 930.4643
Density: 1.57g / cm3
Boiling point: 874.8 ° C at 760 mmHg
Flash point: 482.8 ° C
Vapor pressure: 2.96E-32mmHg at 25 ° C

Synthetic principle: 2-chloro-5-trifluoromethylaniline is added to a hydrochloric acid medium, and an aqueous solution of sodium nitrite is added to carry out the diazotization reaction; the diazonium salt is reacted with 2-hydroxy-3-naphthoic acid to produce Mono-azo dyes are reacted with sulfoxide in o-dichlorobenzene to be converted into acid chloride derivatives; and then subjected to a condensation reaction with 2,5-dichloro-1,4-phenylenediamine to produce crude azo condensation products, CI pigment red 242 was prepared by pigmentation.
